Model:RTFQ1600L

Paper Slitting Rewinding Machine

Size: 7.5(L)*3.5(W)m*2.2(H)m

Customization: Support width and configuration customzation

Delivery time: 50 working days

Contact Us Watch The Video
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
RTFQ1600L Paper Slitting Rewinding Machine
Description

The machine has a cutting speed of up to 400m/min, suitable for a variety of roll paper ranging from 45g/㎡ to 450g/㎡, meeting the needs of modern paper product manufacturing.


Equipped with a sensitive imported correction system, it slices uneven - edged raw materials at high - speed while maintaining accuracy. Its combined circular - knife setup (auto - adjustment optional, for a fee) and high - pressure fan waste - removal system ensure efficient, clean slitting.

Workflow
load material Heavy-duty shaftless hydraulic loading. For unwinding, select 3-6 inch air shafts.
start Servo motor control, constant tension and variable frequency speed regulation.

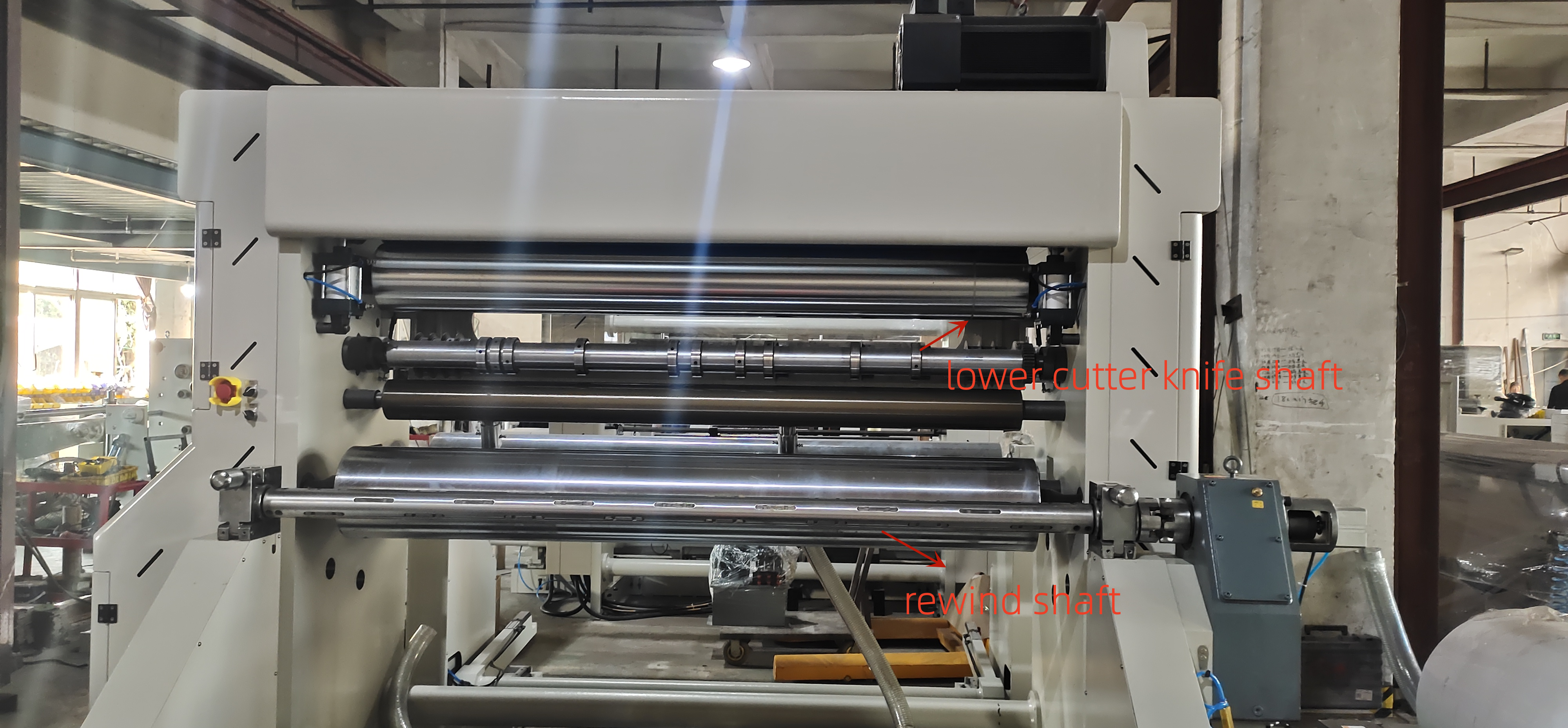

slitting Imported system correction, circular knife slitting and waste edge removal.
detection PLC for length counting. Alarm for remaining material or fixed length shutdown.
rewinding Double-station air shaft rewinding, hydraulic automatic unloading.



Main Technical Parameter

Max web width

1600mm

Max rewinding diameter

1600mm

Max. unwinding diameter

1600mm

Slitting width

50mm-1600mm

Deviation correction total stroke

150mm

Cutting precision

±0.15mm

Paper thickness

45-450gsm

Slitting speed

20-400m/min

Total power

51KW

Power Supplier

AC380V,3phase

Overall dimensions(L*W*H)

7500mm*3500mm*2200mm

Machine weight

18000kg



Tags: RTFQ1600L gantry slitting rewind machine paper slitting rewind machine
Applicable Industries

RTFQ1600L Paper Slitting Rewinding Machine can be applied to the printing of labels, paper cups, packaging bags, etc., such as producing product labels, customizing catering paper cups, printing food and daily necessities packaging bags, etc.

FAQ

Do you have a question? Everything you need to know about the product and how it works.

View all
What is the cutting precision of the RTFQ350 high-speed label slitting machine?
-
The cutting precision of this machine is as high as 0.1mm, which can ensure smooth edges of the cut paper and meet high-quality production requirements.
Can the size of the equipment be adjusted to fit the space in my workshop?
+
Currently, the standard size is 1.85 (L)*1.2 (W)*1.3 (H) m. However, we can optimize the design of certain parts of the equipment to a certain extent according to the actual situation of your workshop to better fit your space. But this may affect the delivery time and cost. The specific situation needs to be further communicated and determined.
How long does it take from placing an order to delivery?
+
Under normal circumstances, the delivery cycle is 35 working days.
What is the cutting speed range?
+
The cutting speed is between 5 and 350 (m/min). You can flexibly adjust the speed according to different paper types and production tasks.
