Model:RTFQ320G

High Speed Label Slitter Rewinder

Size: 1.85(L)*1.2(W)*1.3(H)m

Customizable: Support width and configuration customizable

Delivery time: 35 working days

Contact Us Watch The Video

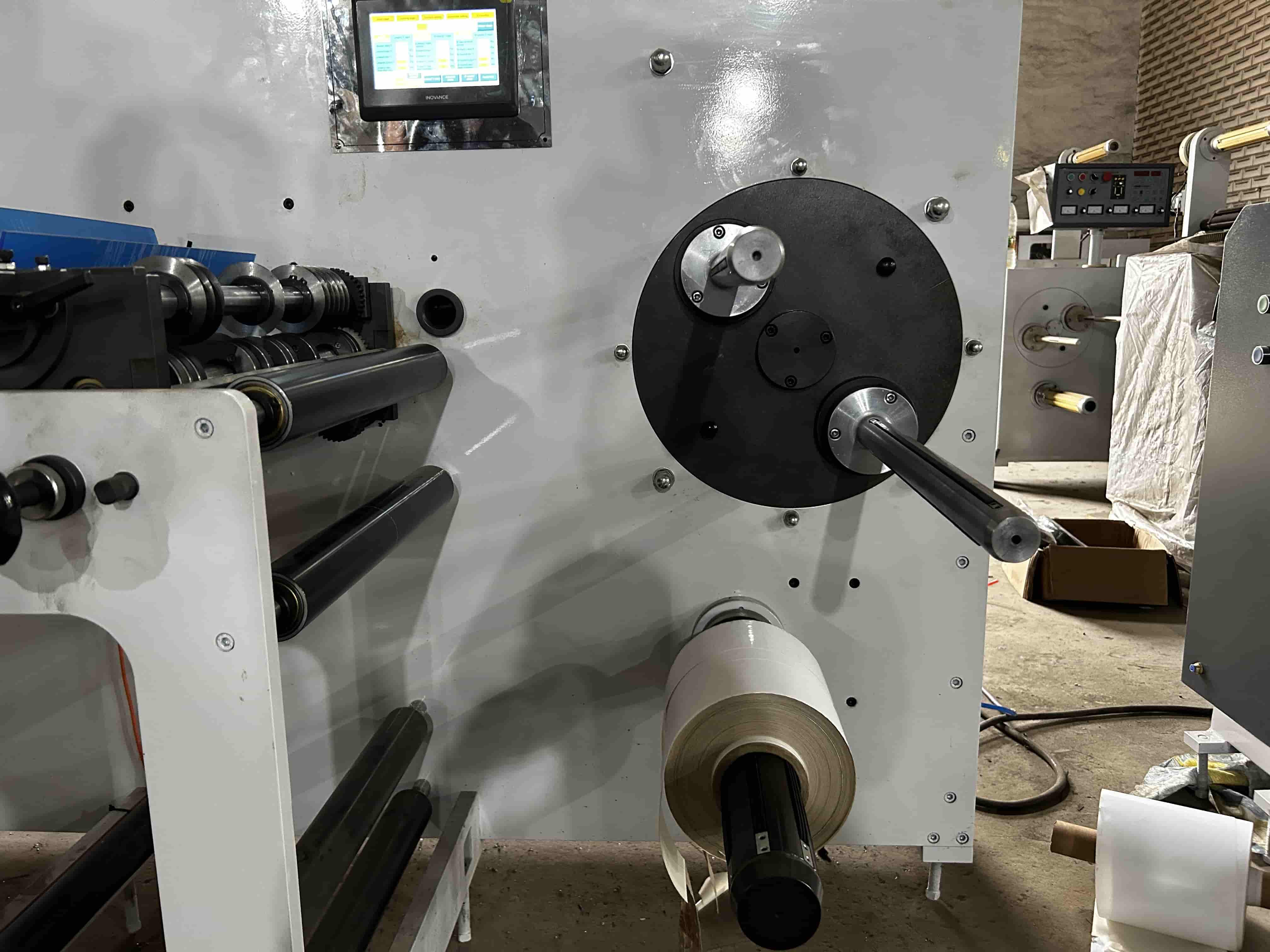

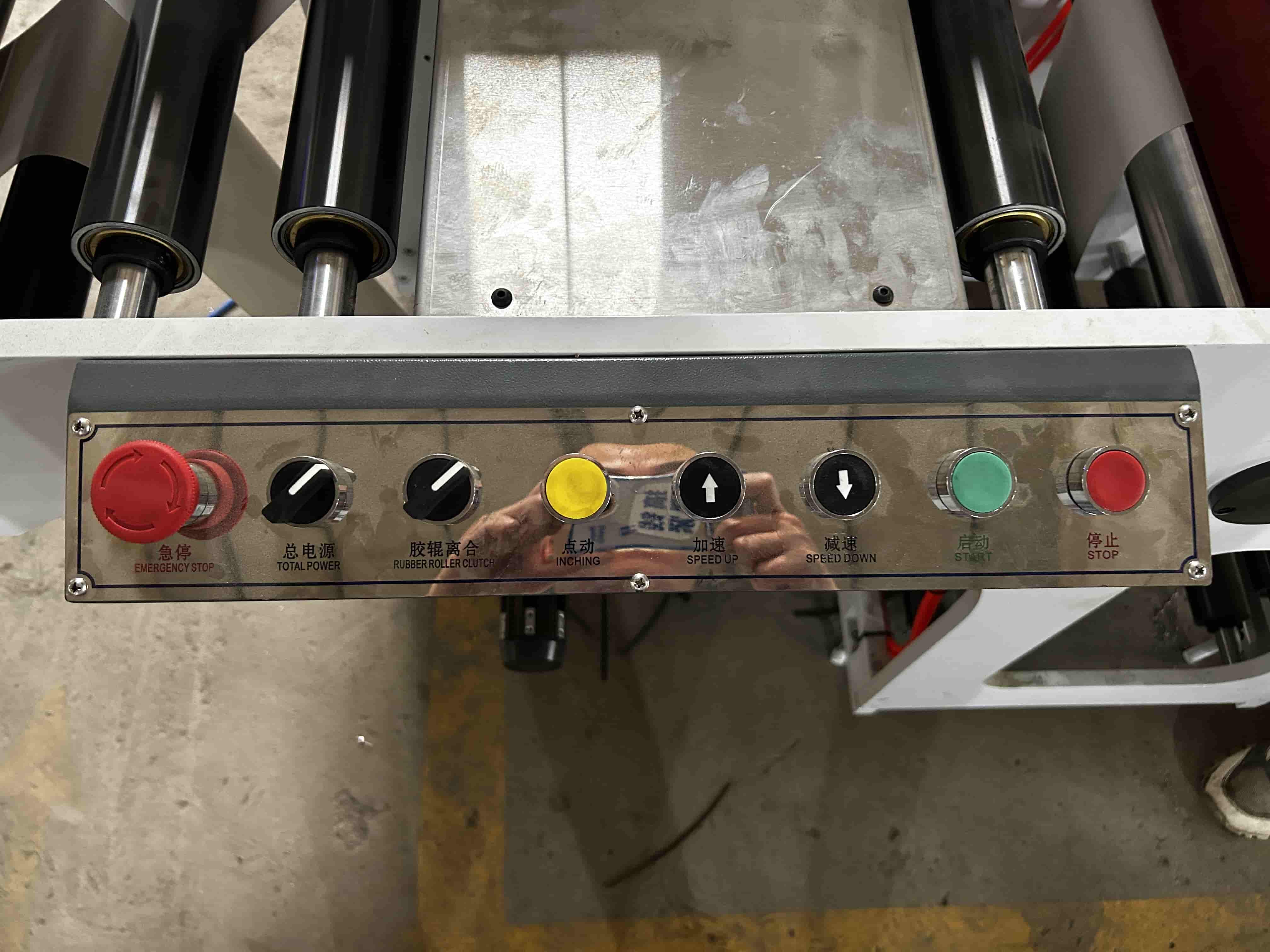

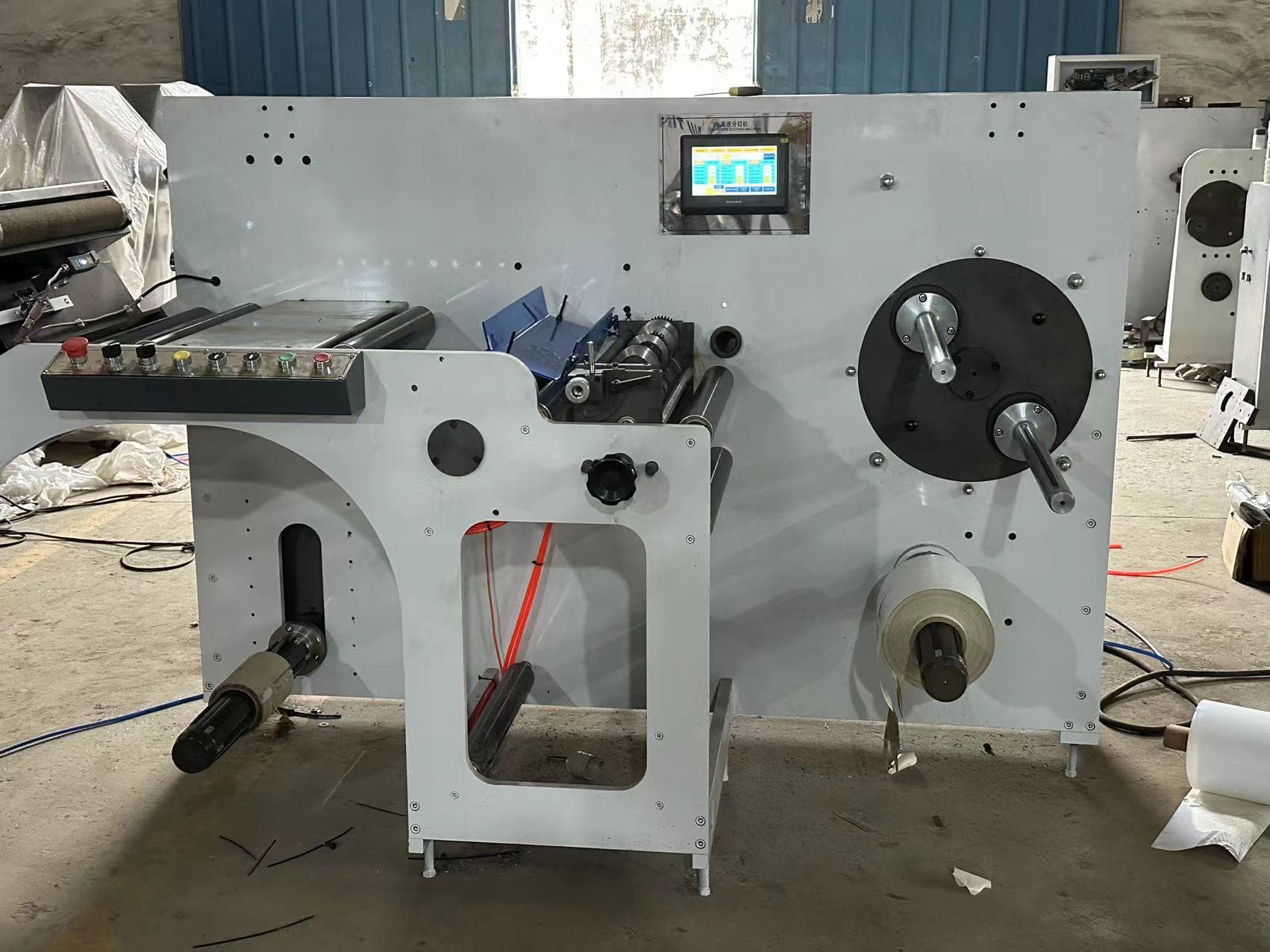

RTFQ320G High Speed Label Slitter Rewinder
RTFQ320G High Speed Label Slitter Rewinder
RTFQ320G High Speed Label Slitter Rewinder
RTFQ320G High Speed Label Slitter Rewinder
RTFQ320G High Speed Label Slitter Rewinder
RTFQ320G High Speed Label Slitter Rewinder
RTFQ320G High Speed Label Slitter Rewinder
Description

High-speed 350m/min, With high slitting accuracy of 0.1mm, widely used in the label printing industry and other related fields.

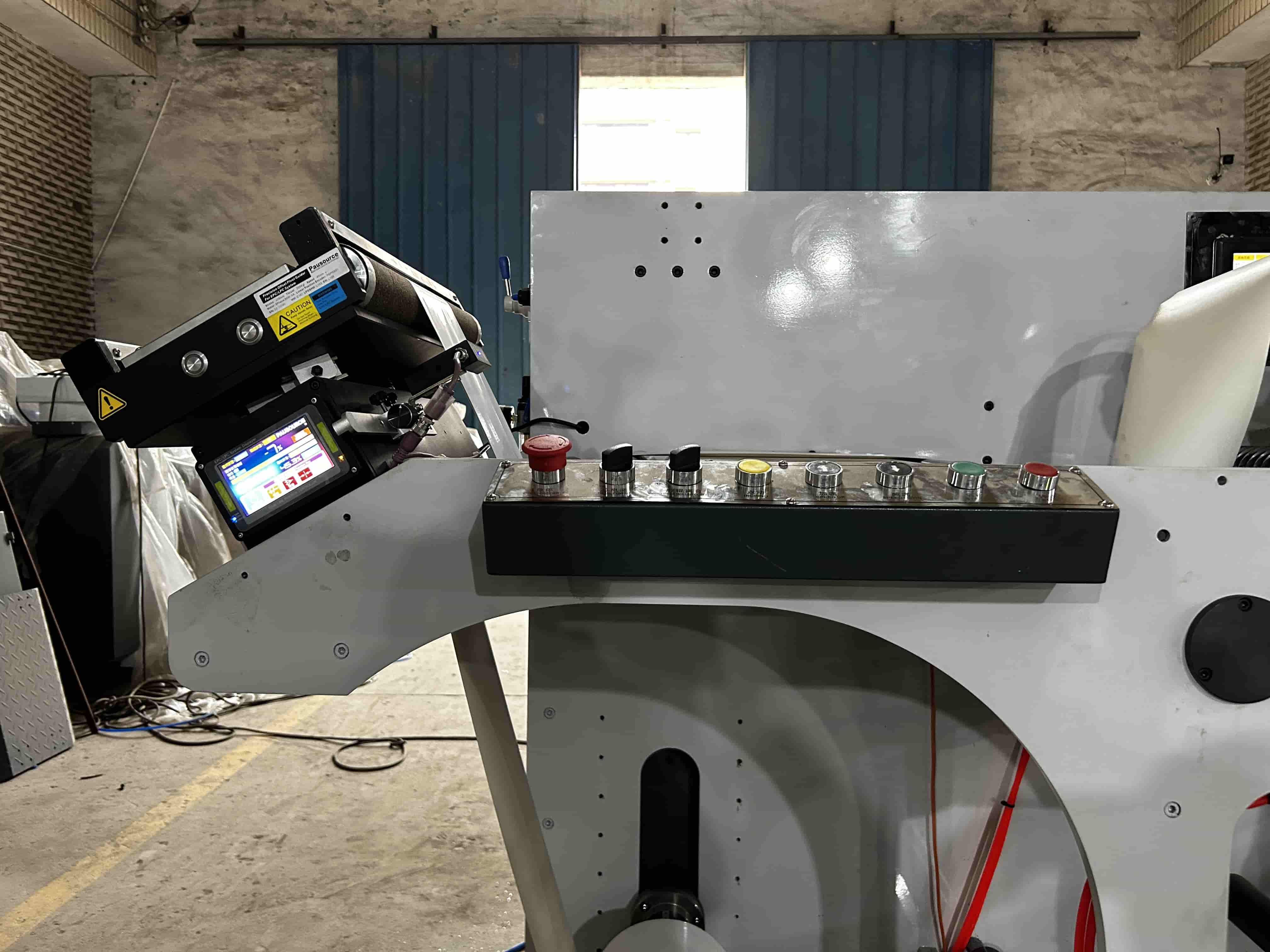

The machine is equipped with hydraulic loading and unloading function, which makes paper roll replacement extremely easy and saves time. At the same time, different sizes can be provided according to customer requirements, and it is equipped with edge guidance system for paper edge detection and automatic centering.



Workflow
Workflow steps Specific operations
Ready Customize to order; prepare paper roll (≤700mm), ready for installation.
Upper Volume In the man-machine system, set the cutting width (≥16mm) and speed (5 - 350m/min) parameters, and the equipment automatically controls the tension.
Settings In the man-machine system, when setting parameters such as width (≥16mm) and speed (5 - 350m/min), the equipment automatically controls the tension.

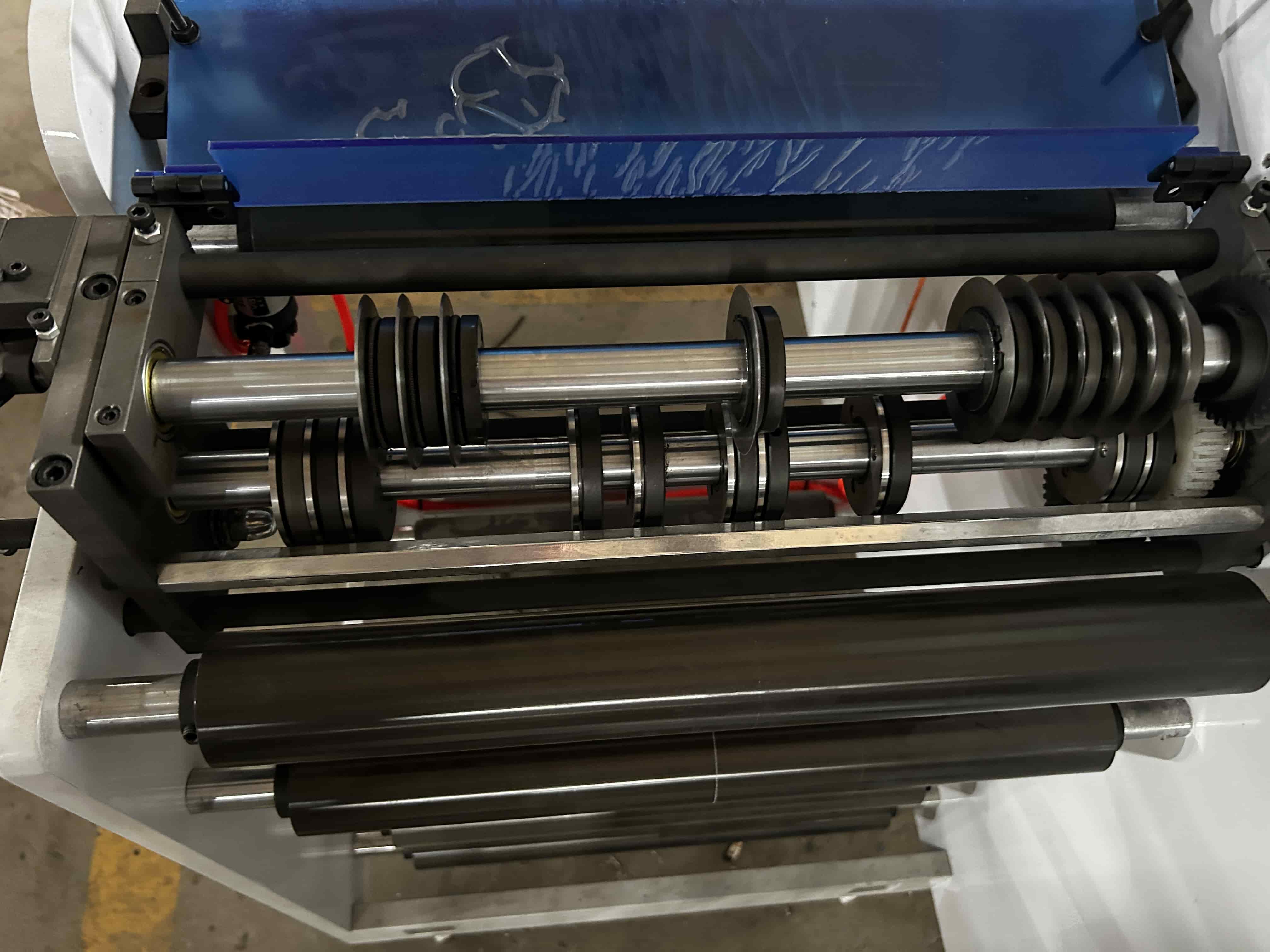

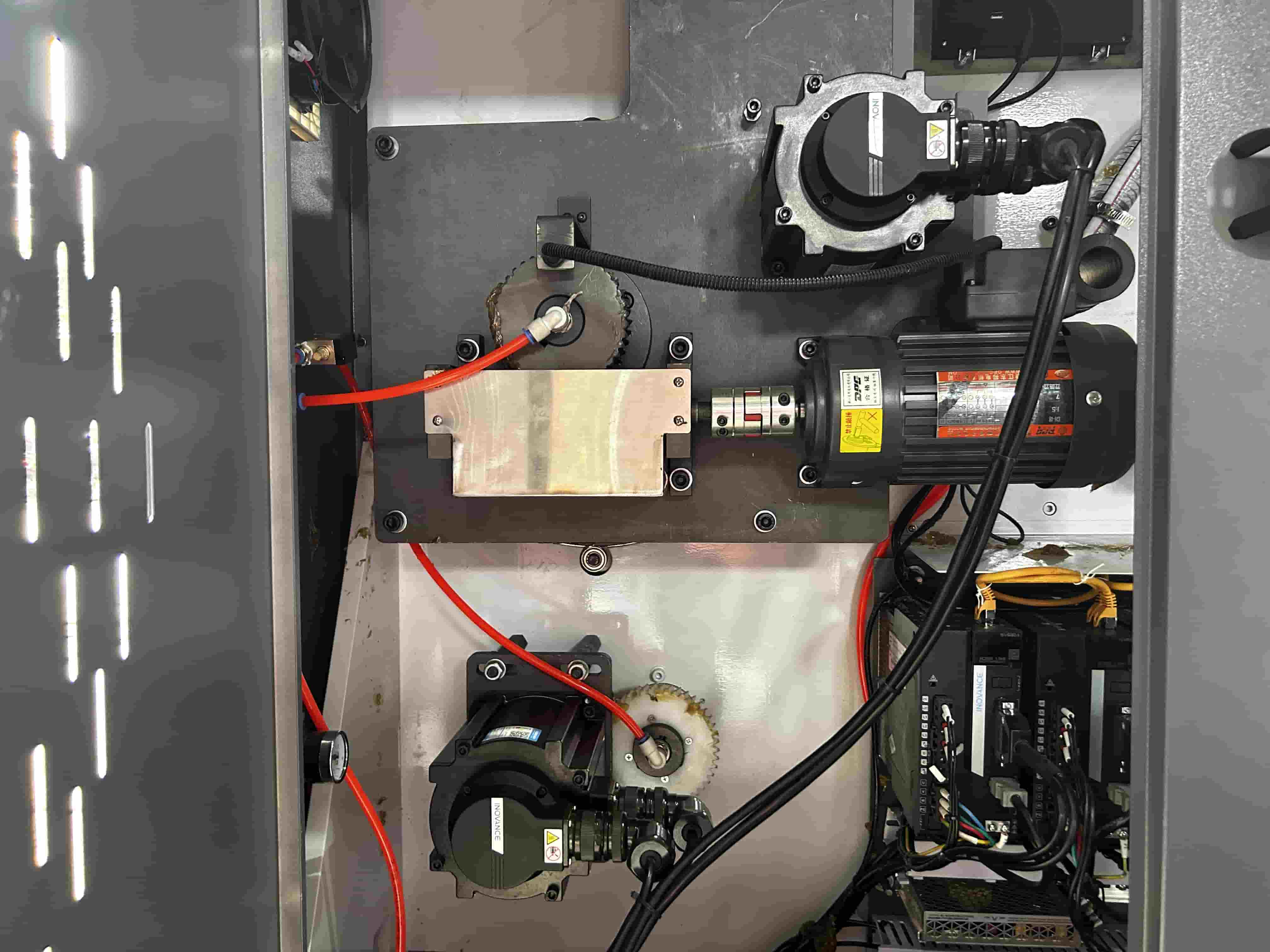

Run Servo drive, unwinding, web guiding, through a three-roll structure for slitting and rewinding (precision 0.1mm), edge guiding system ensures centeredness.
Surveillance Human-machine system real-time monitoring status, measurement, counting, automatic stop for low material.



Main Technical Parameter

Cutting speed

5-350(m/min)

Max web width

320mm

Max unwinding diameter

700mm

Max rewinding diameter

500mm

Min. width after slitting

16mm

Slitting precision

0.1mm

Overall dimensions

1.85m (L)*1.2m (W)*1.3m (H)

Machine weight

(about)1500kg



Tags: RTFQ320G high speed slitting machine label slitting rewind machine
Applicable Industries



High-speed slitting and rewinding machines are suitable for slitting and rewinding of thermal paper, fax paper, computer printing paper, electrocardiogram printing paper, cash register roll paper, double-sided paper, coated paper, kraft paper, label paper and other recording papers.

FAQ

Do you have a question? Everything you need to know about the product and how it works.

View all
Is the operation of RTFQ320 complex? Is it easy for new employees to get started?
-
The operation is simple. Equipped with a touch screen human-machine system, the parameter setting is intuitive. It has an automatic control function. New employees can get started after simple training.
What will happen to the machine when the paper breaks during slitting?
+
A protection mechanism is provided. When the paper breaks, the machine will stop immediately. The human-machine system displays fault prompts for convenient troubleshooting.
How can we ensure the long-term stable operation of the machine?
+
The adoption of a full servo system and high-quality mechanical structure, such as three-roller core rewinding and a closed-loop braking system, can ensure long-term stable operation and reduce failures.
How about the energy consumption of the machine? Is it energy-saving and environmentally friendly?
+
The use of a variable frequency motor for stepless speed regulation can adjust the power as needed. It can not only ensure efficiency but also reduce energy consumption. It is energy-saving and environmentally friendly and is conducive to reducing costs.
