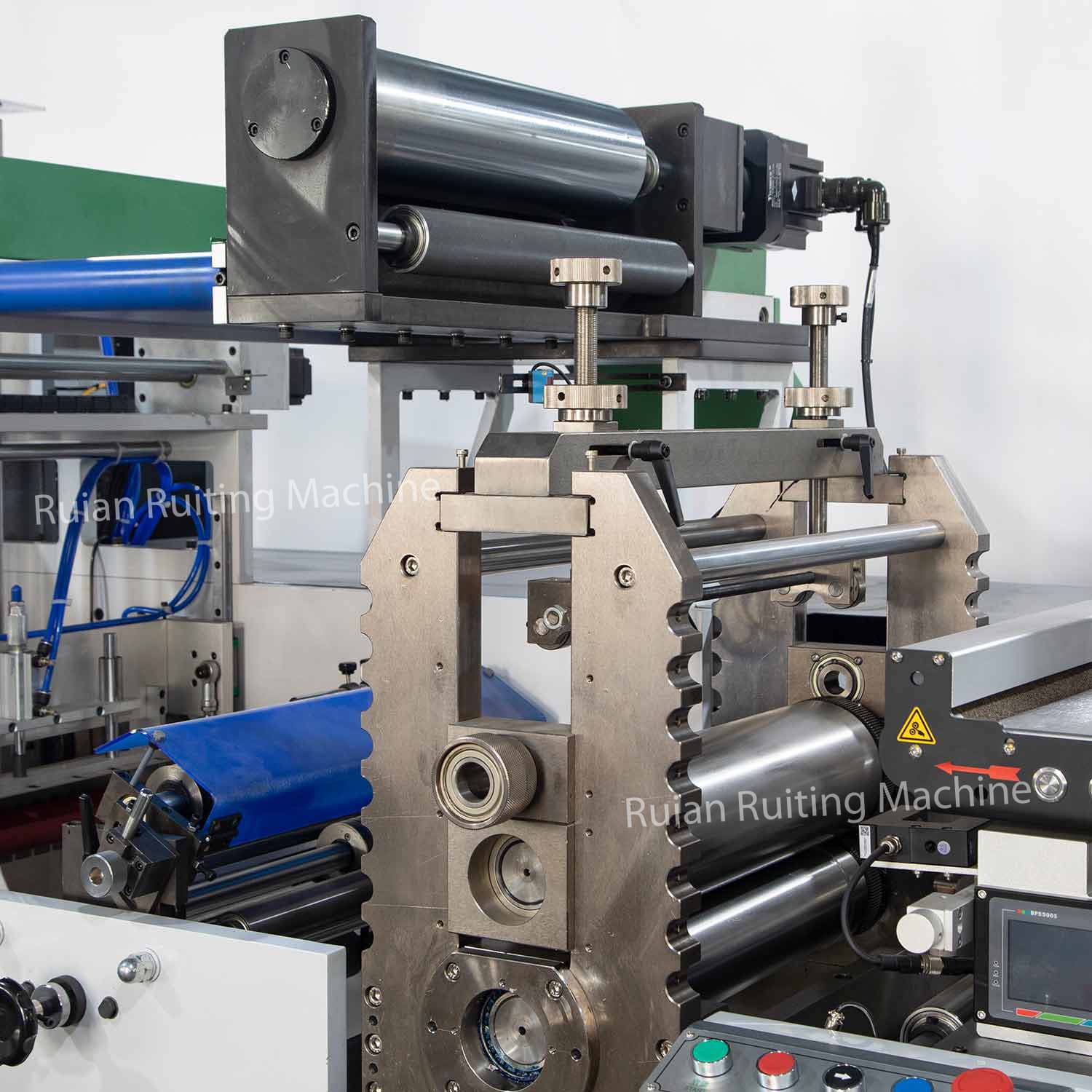

RTFJ350 Rotary Die Cutting Slitting Rewinding Machine

The maximum speed of RTFJ350 Rotary Die Cutting Slitting Rewinding Machine: 220 meters/minute, using the Huichuan control system (7 servo+motion controllers), equipped with round -voltage mold cutting, divided into cutting, automatic sheet, automatic flying knife, automatic labeling labeling, automatic labeling labeling, and automatic labeling labeling. Paper tube -free, non -disclosure, shovel waste, counting, remembering rice and other functions.

-Has a maximum web width of 350mm for a wide range of label sizes.
-Maximum rewinding diameter is 140mm providing ample space for finished rolls.

  • Size:

  • 2.3(L)*1.2(W)*3.0(H)m

  • Customizable:

  • Support width and configuration customizable

  • Delivery time:

  • 45 working days

Contact Us Watch The Video
Main Technical Parameter





Descriptions

Parameters

Max web width

350mm

Max rewinding diameter

140mm

Max. unwinding diameter

800mm

Cutting precision

±0.1mm

Mechanical speed

220m/min

Overall Dimension

2300mm*1200mm*3000mm

Weight of Machine

1500kg

Total power

9kw
