Paper Cup Flexo Printing and Punching Machine

  • Size:

  • Printing Machine:4.5(L) *1.8(W) *2.25 (H)m

  • Punching Machine: 3.1(L)*1.4(W)*1.8(H)m

  • Customization:

  • Support width and configuration customization

  • Delivery time:

  • 60 working days

Contact Us Watch The Video
Product Description

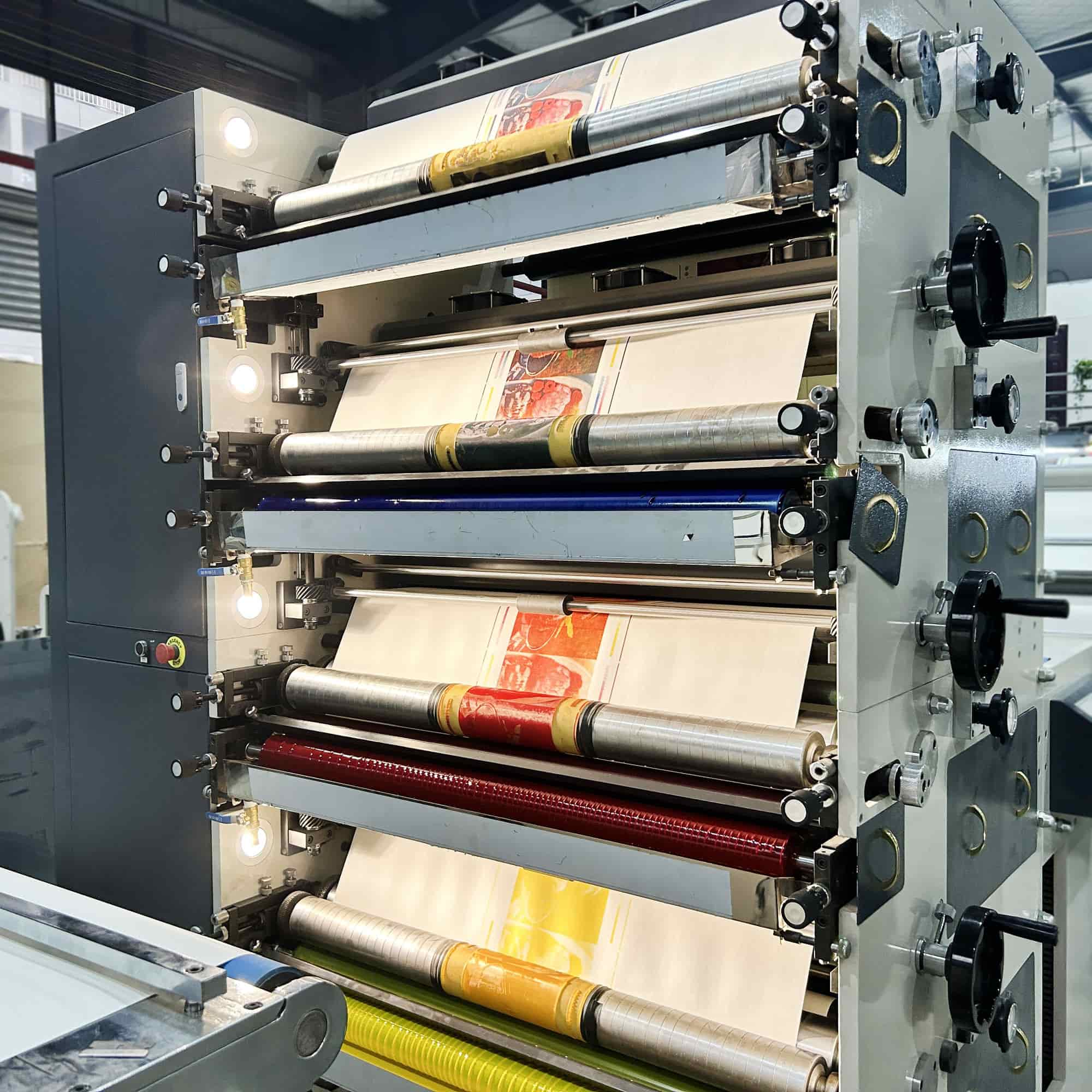

The Paper Cup Flexo Printing and Punching Machine is a highly efficient and versatile piece of equipment that combines both printing and punching functions.



Unwinding Web GuidingprintingDrying Rewinding


Printing Process:
1.Unwinding: The Paper Cup Flexo Printing and Punching Machine starts by smoothly unwinding the printing material. This initial step prepares the material for the subsequent stages of the printing process.
2.Web Guiding: Precise web guiding on this machine ensures accurate positioning of the material for printing. This is crucial for achieving high-quality prints.
3.Printing: Using flexo printing technology, the machine can create vibrant and detailed prints on a wide variety of materials. These include carbonless paper, thermal paper, aluminized paper, coated paper, cardboard, copy paper, self-adhesive, BOPP, PET plastic film, and more. The printed products can be used in various applications such as labels, multi-layer labels, tissue paper, plastic films, paper cups, cartons, food packaging bags, and wrapping paper.
4.Drying: After printing, the machine quickly dries the ink to ensure a smudge-free and durable finish. This step is essential for the quality of the final printed product.
5.Rewinding: The Paper Cup Flexo Printing and Punching Machine neatly rewinds the printed material, making it ready for the punching process.





It can be printed on carbonless paper, thermal paper, aluminized paper, coated paper, cardboard, copy paper, self-adhesive,BOPP, PET plastic film and other materials. It can be widely used in printing fields such as labels, multi-layer labels, tissue paper, plastic films, paper cups, cartons, food packaging bags, wrapping paper, etc.



1.Cut the roll paper into shaped sheet blank.

2. High speed,170-230times/min,about 600-1000pcs/min.

3. Cut the roll paper to small blank directly,control the waste,the paper Wastage rates small than normal cutting machine.

4. Strong frame,easy operate.

5. Automatic and request less labor.

Product Details
Main Technical Parameter



Descriptions

Parameters

Model

RTRY-950

Printing speed

60m/min

Printing color

4color

Max width of paper

950mm

Max unwind diameter

1200mm

Max rewind diameter

1200mm

Printing length

175-380mm

Precision

±0.1mm

Overall dimension

4.5(L) × 1.8(W) × 2.25 (H)m

Weight

About 4500kg



Paper request

100-500g/m2

(art paper, offset paper, pe paper )

Voltage supply

380V or customized

Cup size

3-32oz

Speed

170-200times/min

Option 250times/mintues)

Roll diameter

1400mm

Roll width

960mm

General power

8.5kw

Weight

2200kgs

Packing weight

2300kgs

Measurement

3100*1400*1800mm

Packing size

2900*1600*1850mm

Electric box weight and size

150kgs

630*500*1000mm
