Model:RTHQ1100D

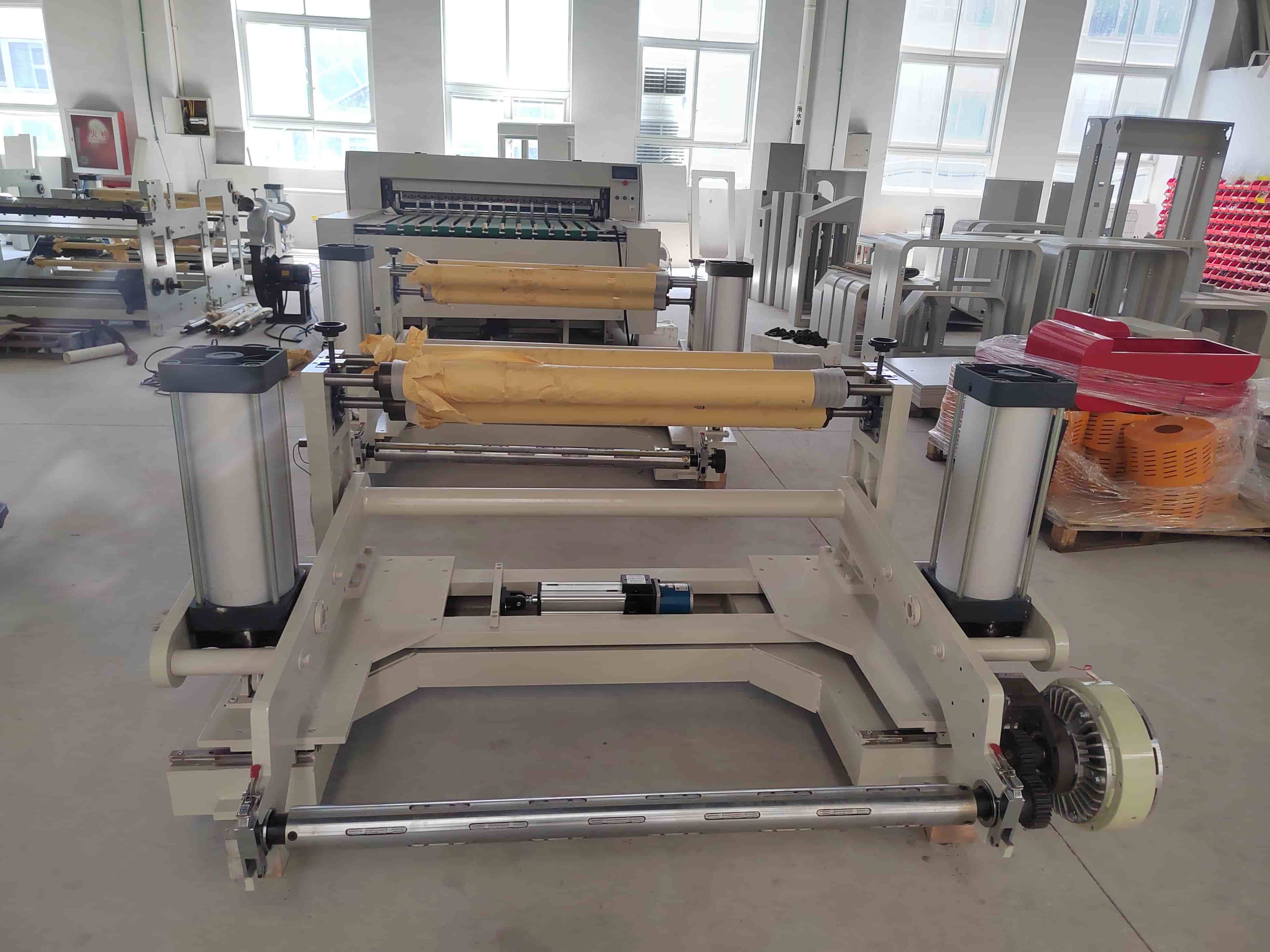

Roll To Sheet Cutting Machine

Size: 5.5(L)*1.87(W)*1.85(H)m

Customizable: Support width and configuration customizable

Delivery time: 50 working days

Contact Us Watch The Video
Description

The RTHQ1100D Roll To Sheet Cutting Machine is a highly versatile and efficient piece of equipment designed for cutting a wide variety of large roll packaging materials. It is suitable for materials such as paper, self-adhesive, paper-plastic composite, film, OPP, PVC, pearl film, film composite, color printing composite, non-woven fabric, and many others.


This machine utilizes a servo motor to control fixed-length cutting, ensuring precise and accurate cuts every time. The transmission system employs pneumatic, photoelectric sensor, and other centralized control methods, providing seamless operation and enhanced control.


The RTHQ1100D integrates light, electricity, and gas technologies, offering several advantages. It is easy to operate, with a user-friendly interface that allows operators to quickly set up and adjust cutting parameters. The high cutting accuracy ensures that the end products meet the strictest quality standards. The mechanical stability of the machine ensures reliable operation over long periods, reducing downtime and maintenance costs. Additionally, the machine operates with low noise, creating a more pleasant working environment.


It features motor frequency conversion speed regulation, allowing for flexible control of the cutting speed to meet different production requirements. The automatic counting function provides accurate tracking of the number of sheets cut, while the alarm stop function alerts operators in case of any issues, ensuring safe and efficient operation. The magnetic powder taper automatic tension adjustment function maintains consistent tension on the material during the cutting process, preventing wrinkles and ensuring smooth cutting.


With its advanced features and capabilities, the RTHQ1100D is currently the ideal equipment for high-quality large roll cutting in China. Whether for packaging, printing, or other industries, this machine offers a reliable and efficient solution for all your large roll cutting needs.

Main Technical Parameter

Max. Cutting width

1100mm

Max. unwinding diameter

Φ1400mm

Power Supplier

7kw

Cutting precision

±0.2mm

Baffle thickness

20-550gsm

Length of cutting

200-1200mm

Fixed speed

10-150times/min

Overall dimensions(L*W*H)

5500*1870*1850mm

Power voltage

380V,3 phase,50HZ/60HZ

Machine weight

3600kg
