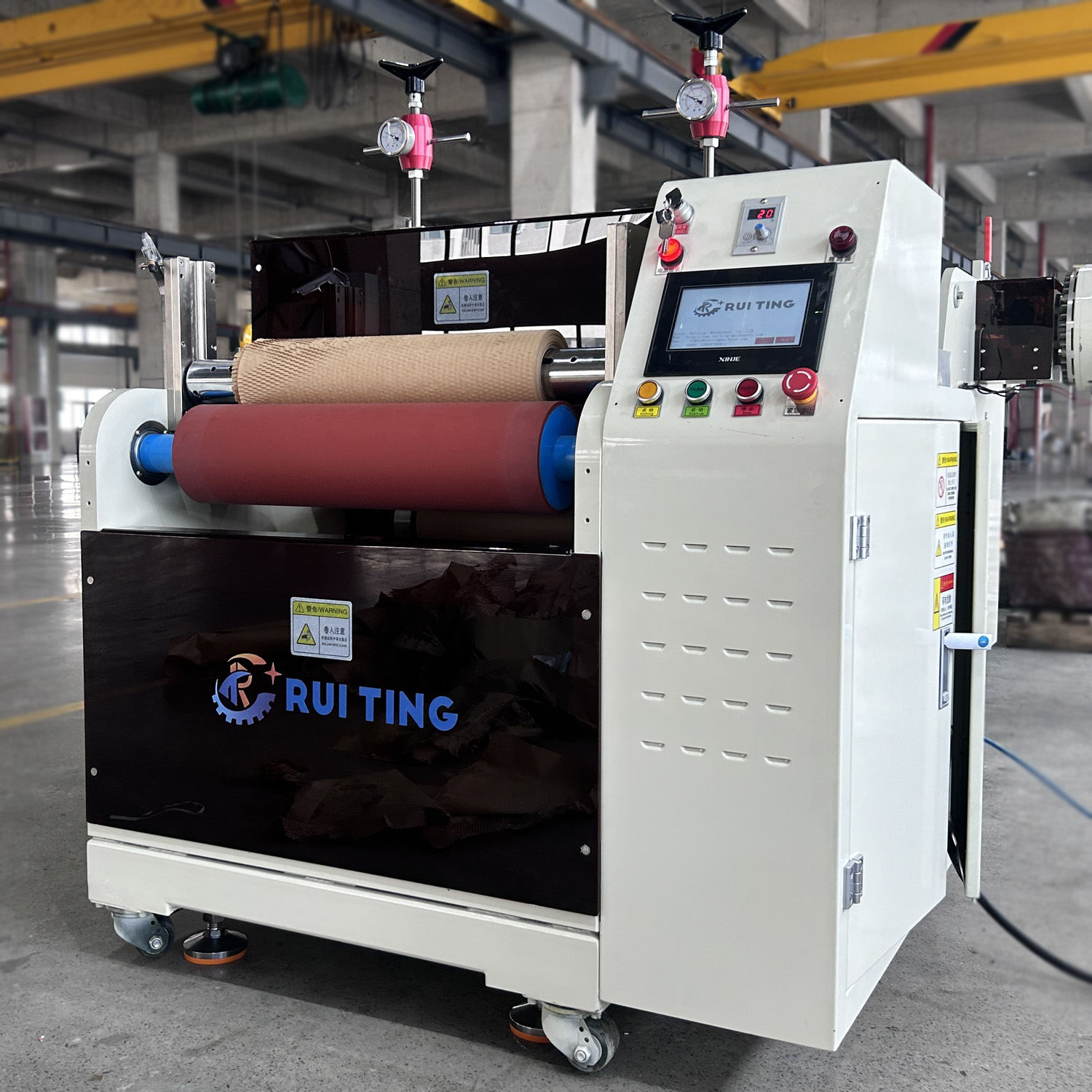

RTMQ520 Honeycomb Paper die cutting machine

  • Size:
  • 2.8(L)X1.15(W)X1.5(H)(m)
  • Customizable:
  • Support width and configuration customizable
  • Delivery time:
  • 35 working days
Contact Us Watch The Video
Product Description

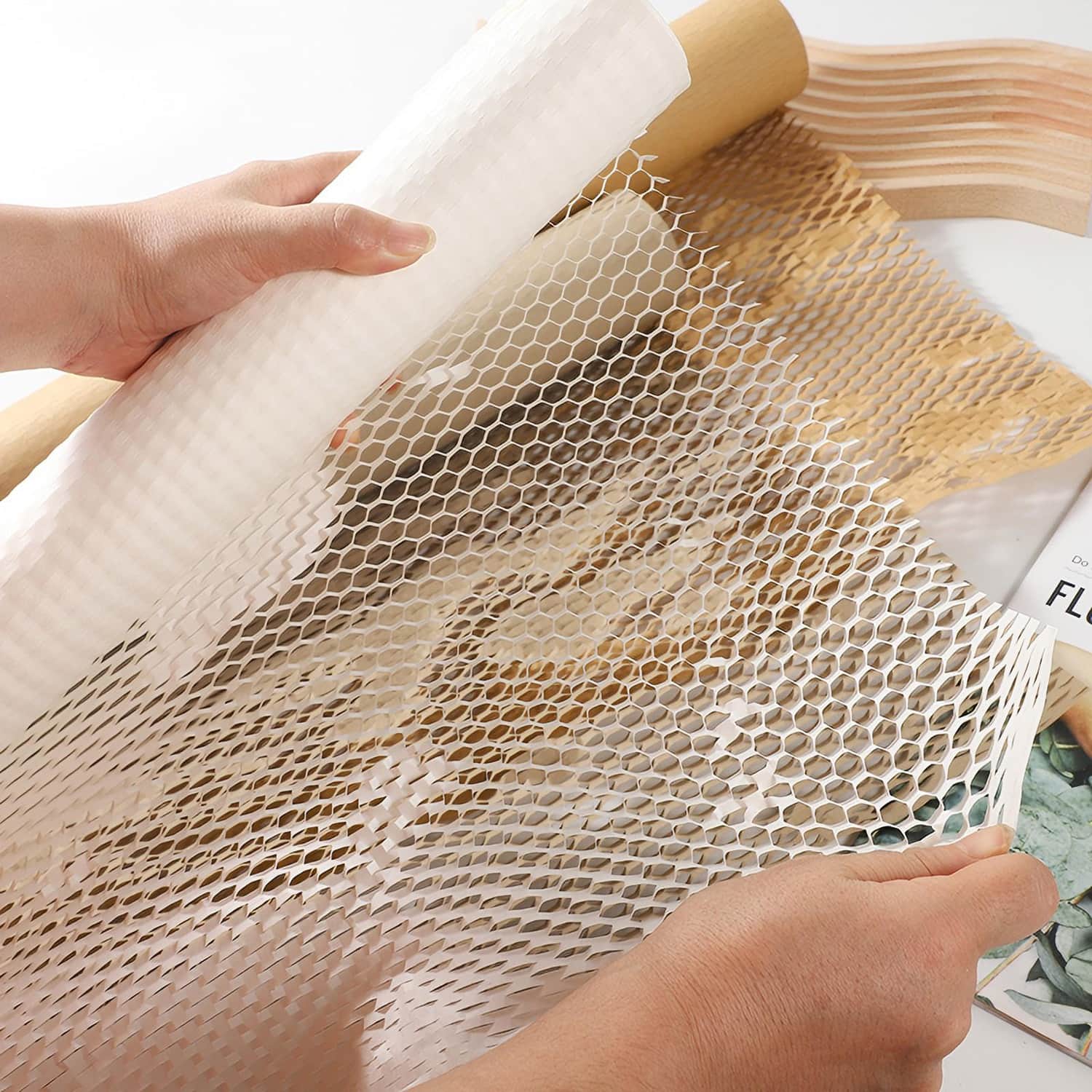

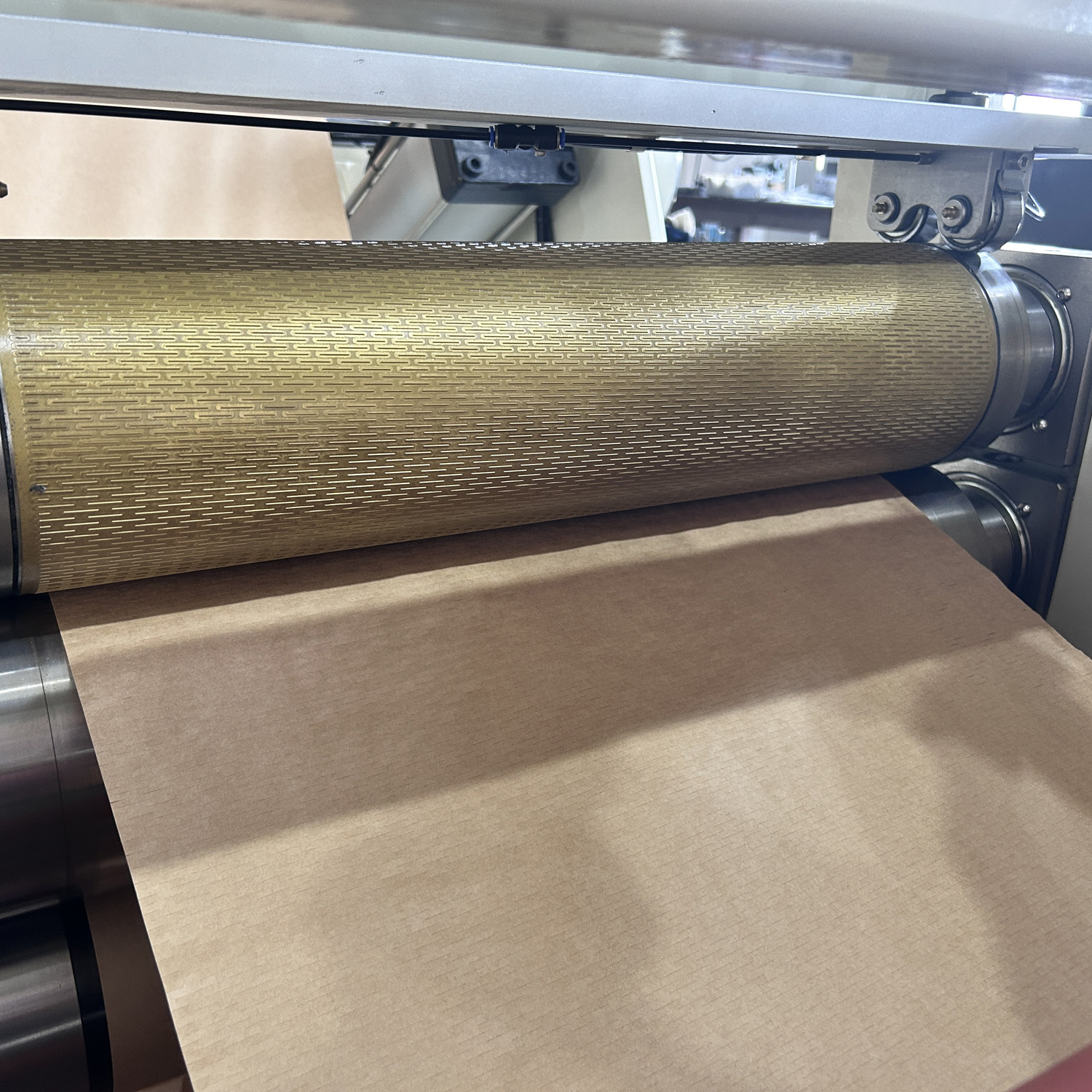

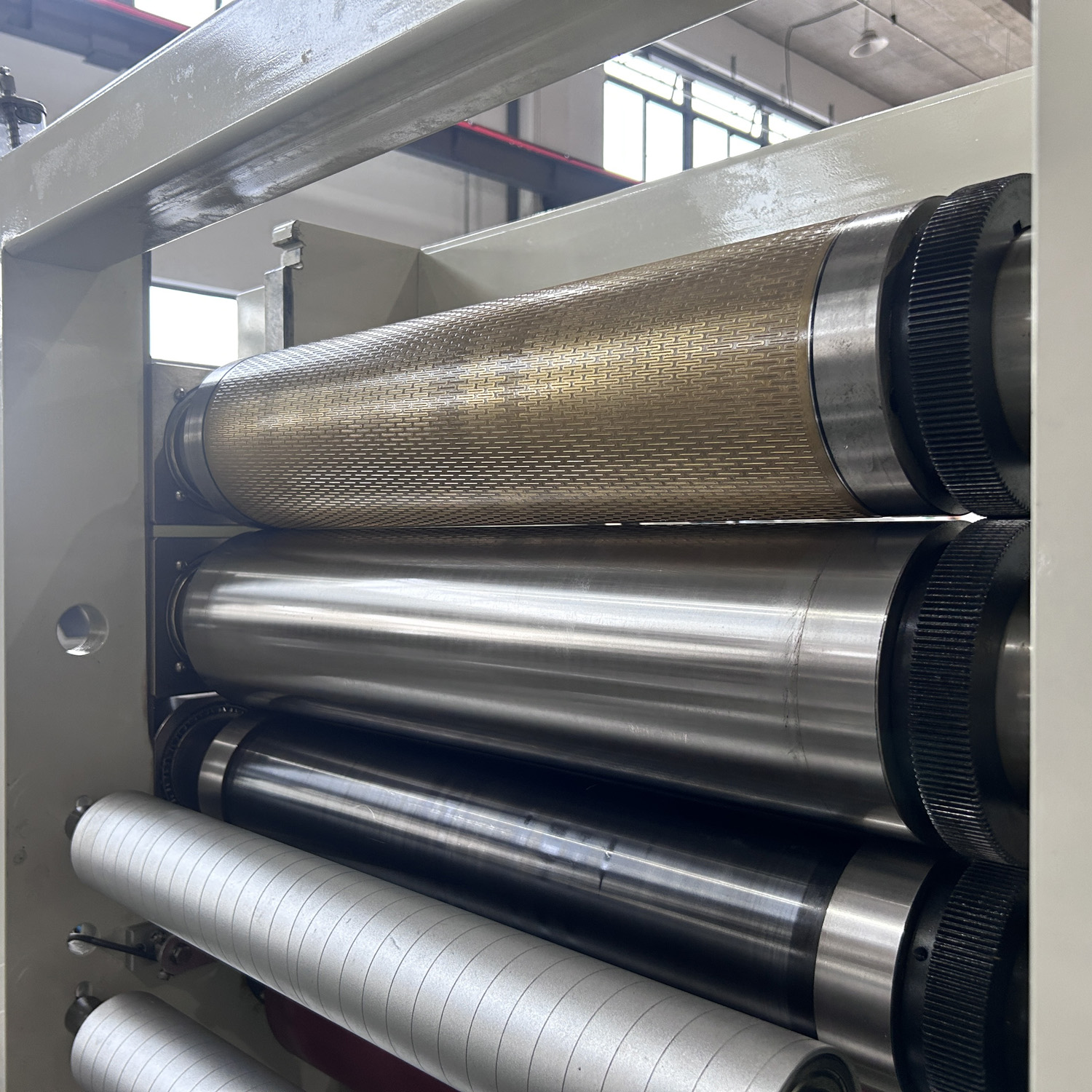

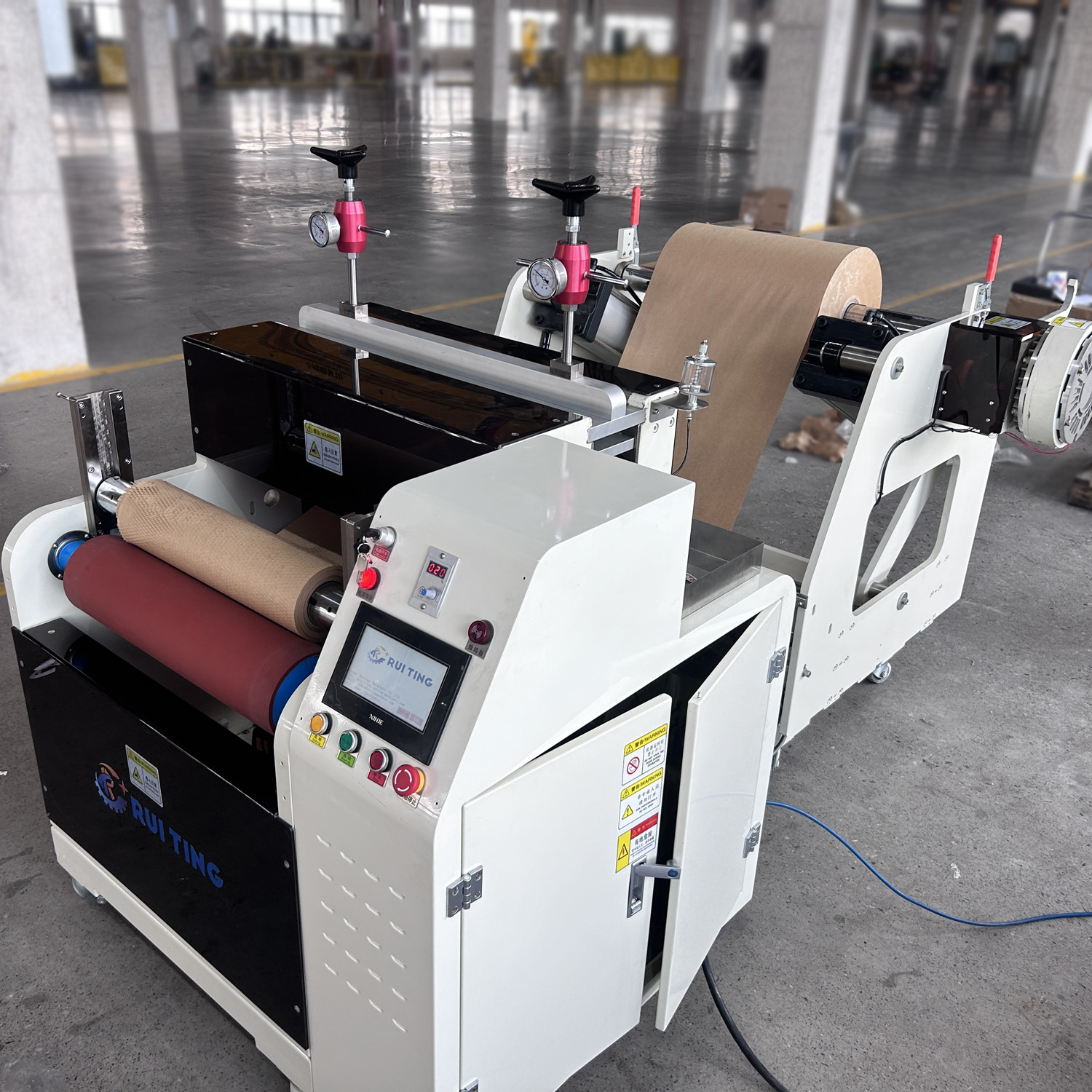

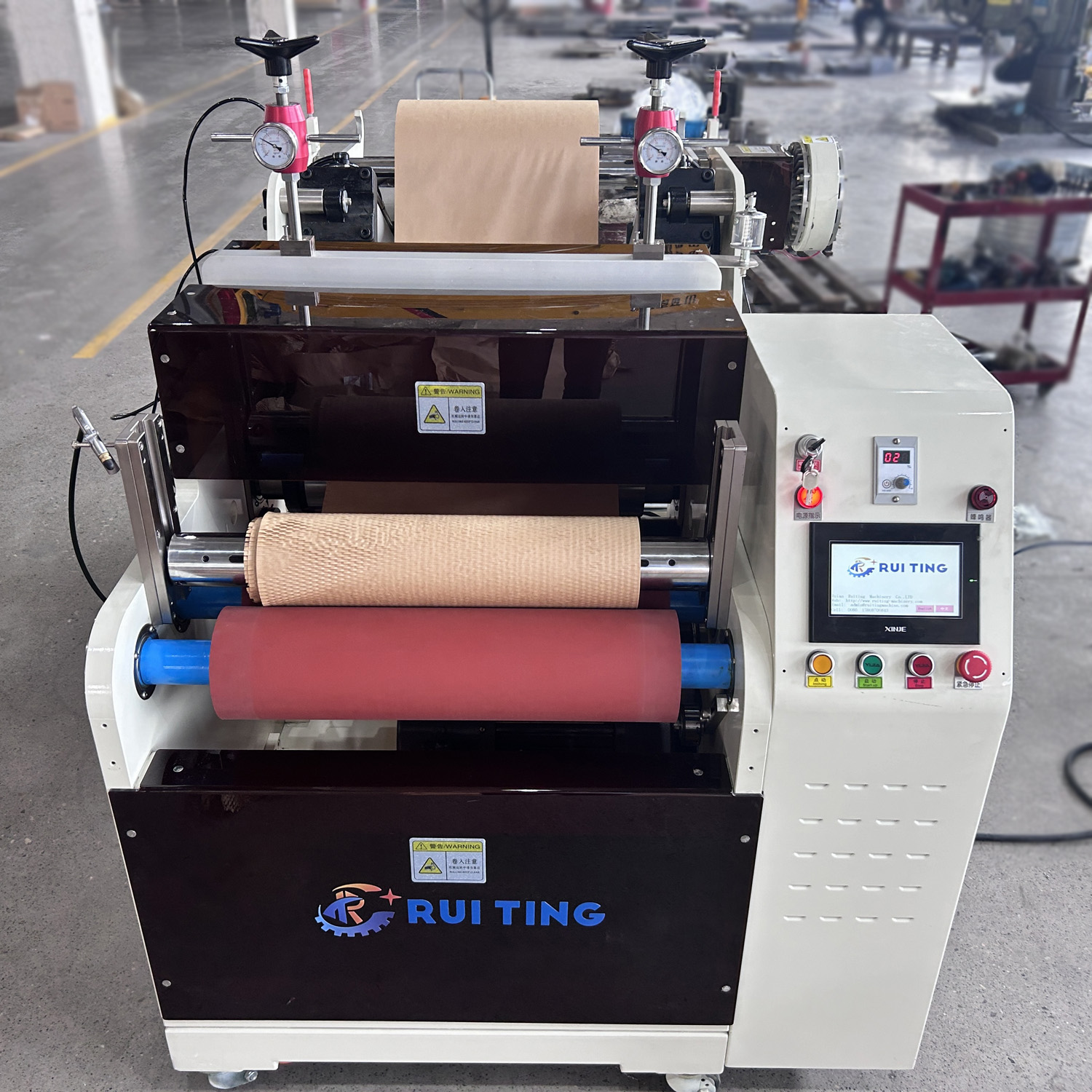

The RTMQ520 Honeycomb Paper die cutting machine is a highly advanced and efficient piece of equipment designed for the production of honeycomb paper. The original kraft paper is precisely die-cut by this machine. With a slight pull, countless hollow three-dimensional regular hexagons are generated, forming an integral force-bearing member - the paper core. This results in a new type of environmentally friendly and energy-saving material with a sandwich structure. It boasts several advantages such as light weight, high flatness, and excellent buffering performance, making it an environmentally friendly and green packaging consumable.

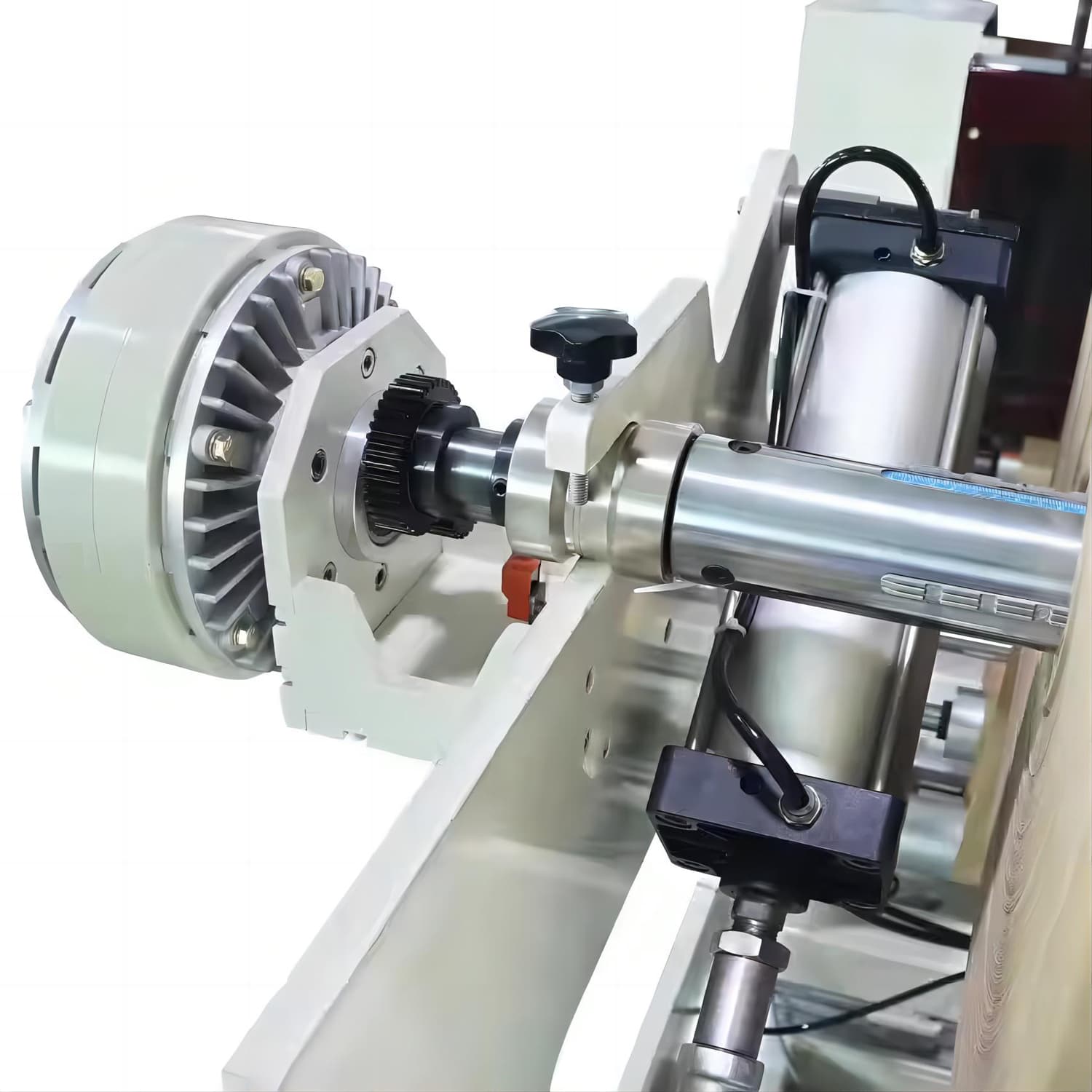

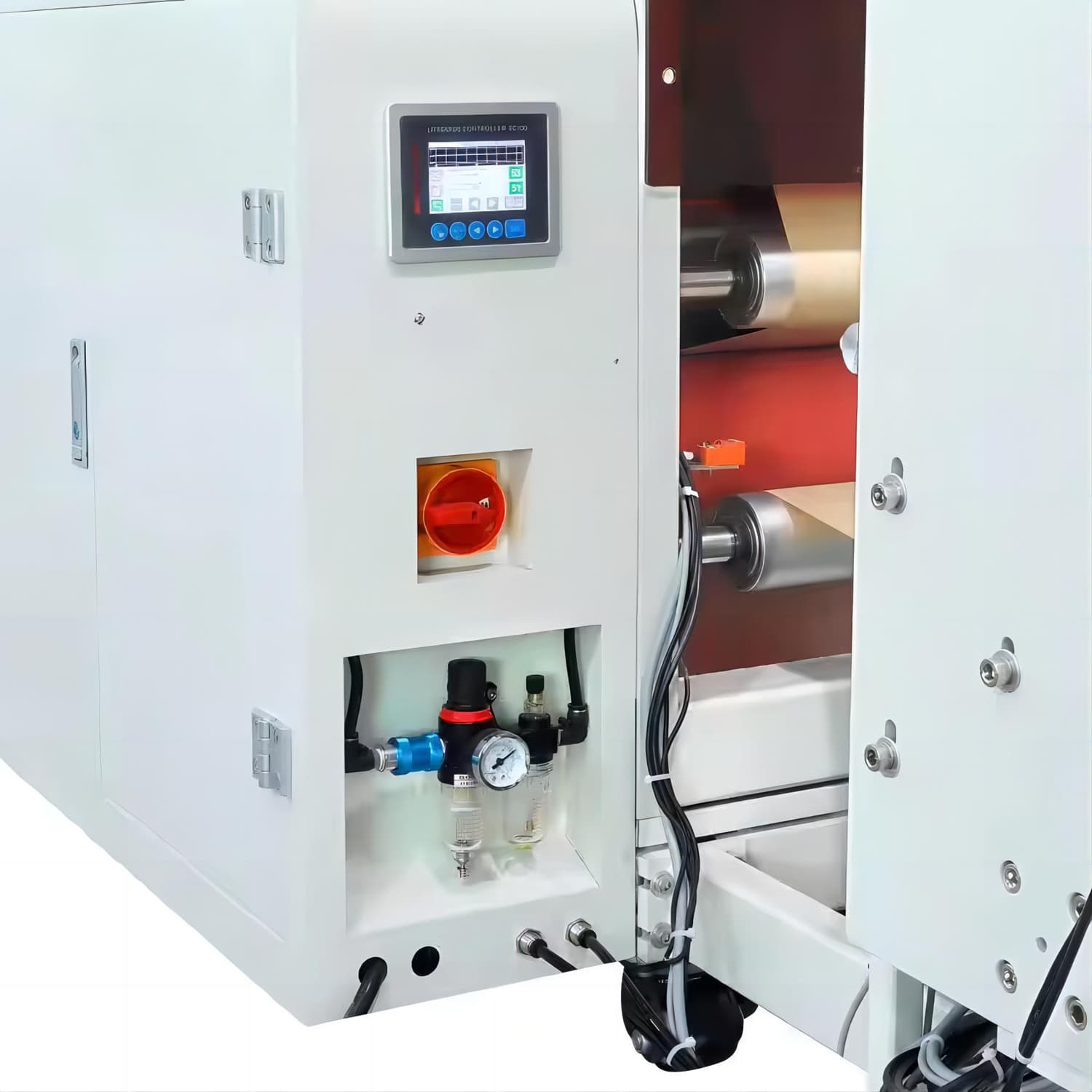

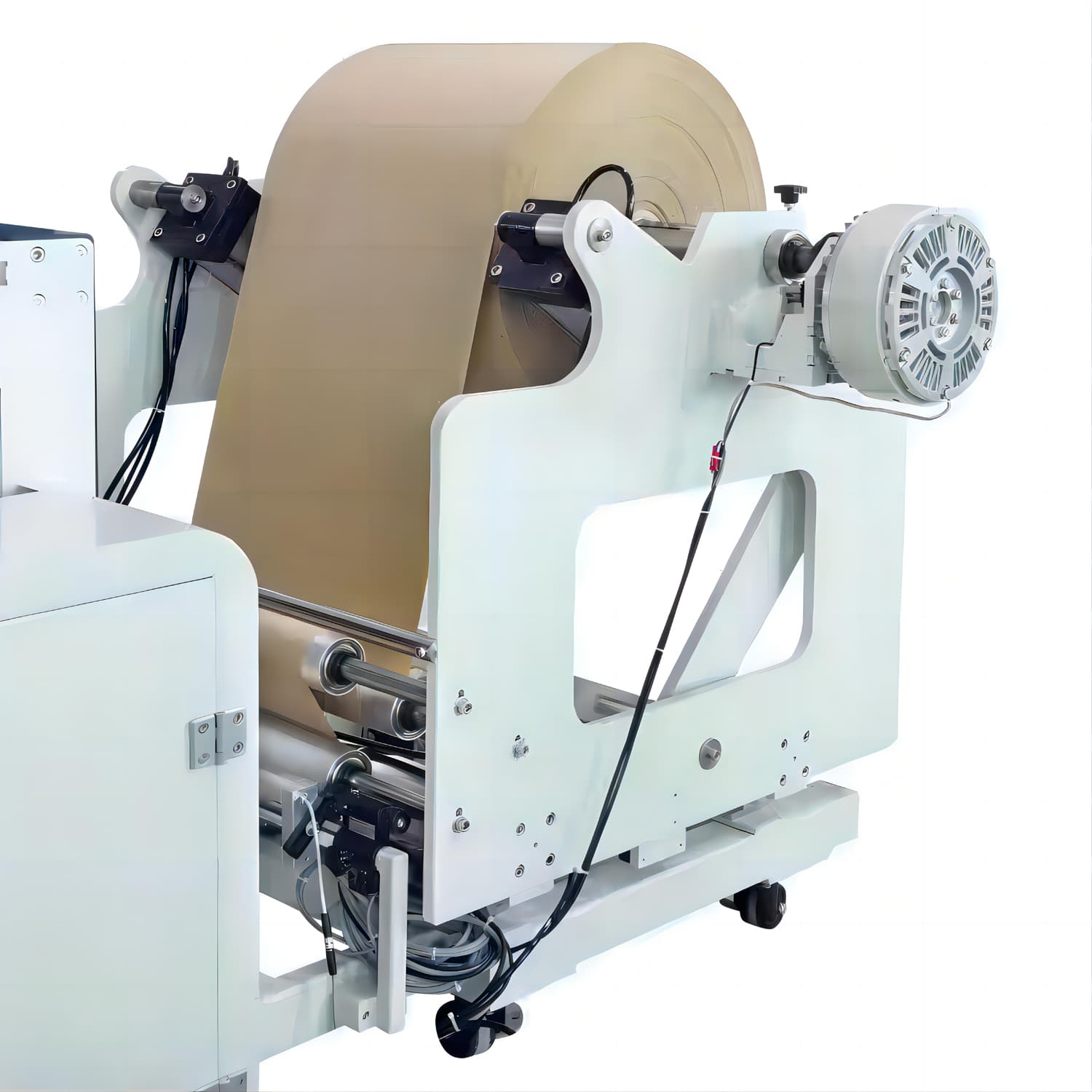

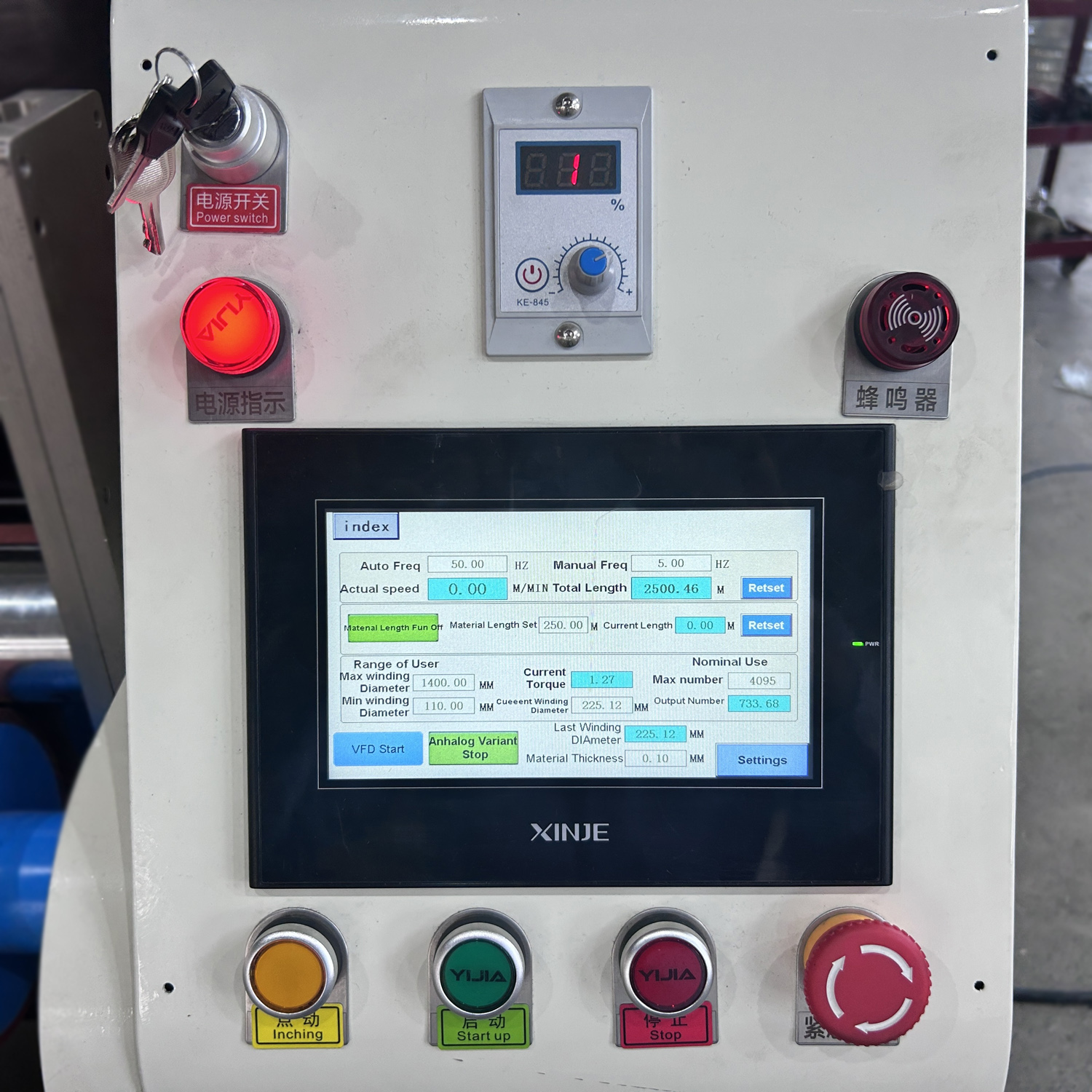

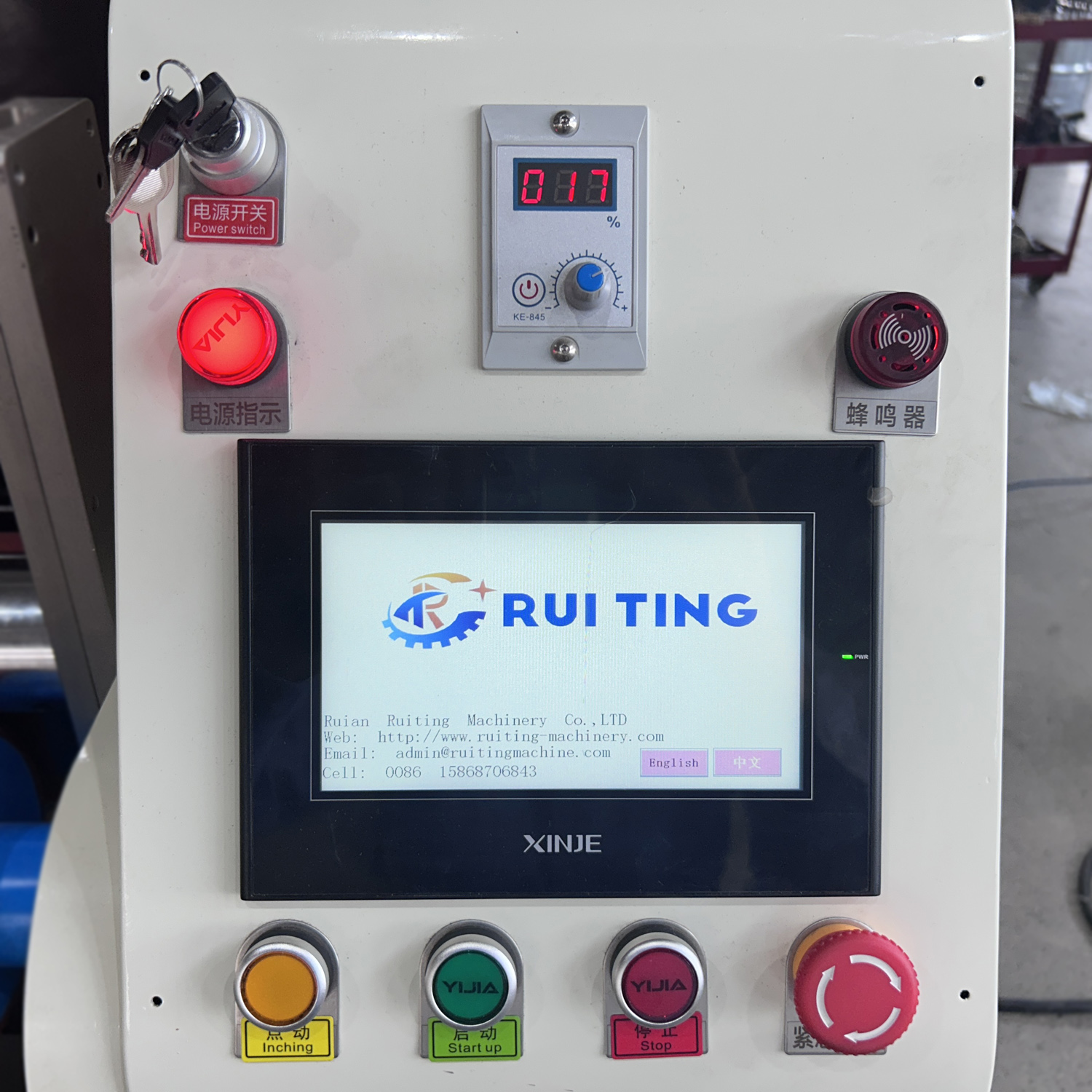

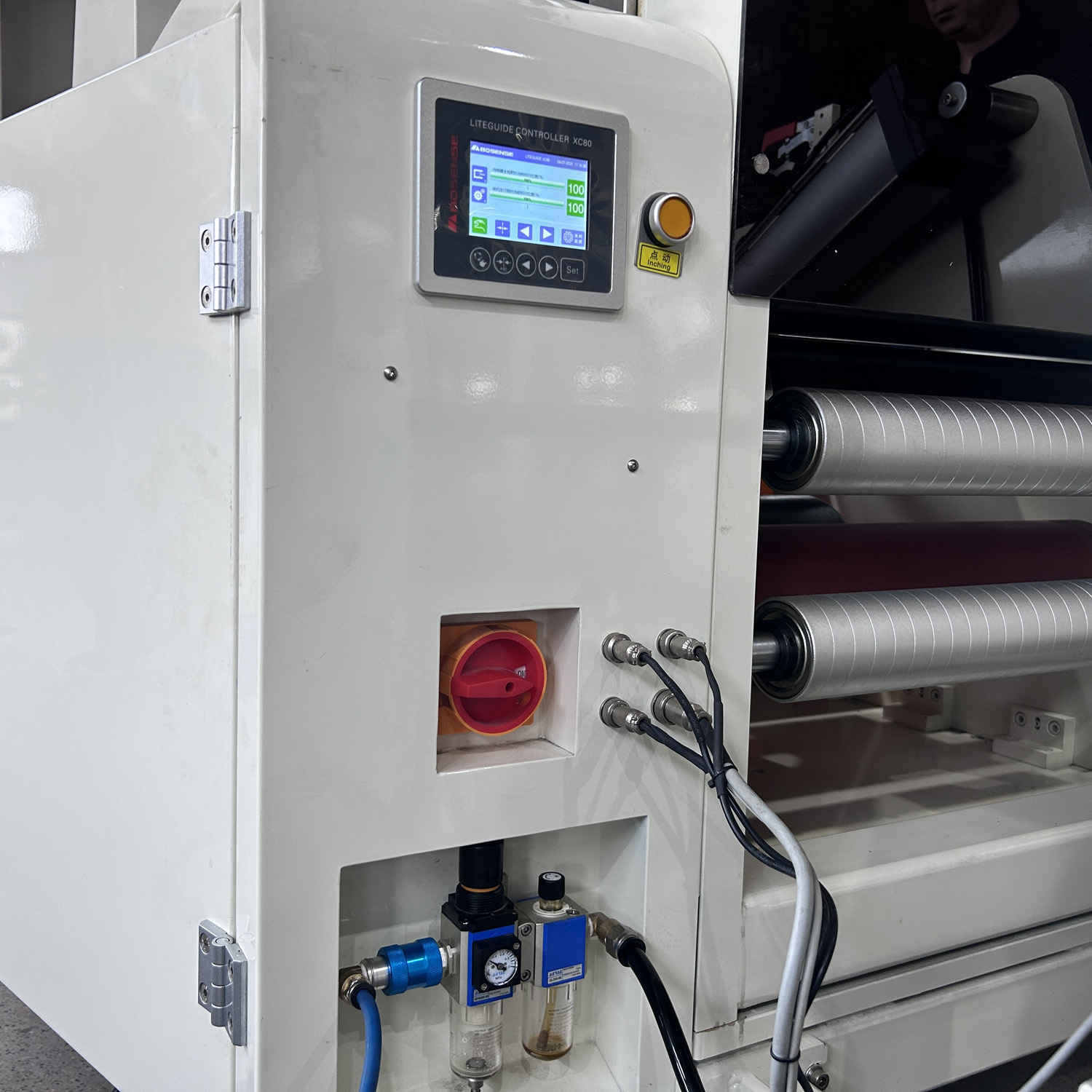

Under the intelligent control of PLC, this machine integrates unloading, die-cutting, and rewinding processes, realizing seamless intelligent automatic operation. It is equipped with a corrector between the die-cutting position and the unwinding section to ensure the smooth and stable operation of rewinding. The machine also features unwinding magnetic powder tension control to guarantee uniform unwinding tension. Additionally, rewinding has magnetic powder tension control, enabling free adjustment of the rewinding tension.


This remarkable machine has functions such as automatic counting and alarm of rewinding length. With a die cutting speed ranging from 0 to 200m/min and a die cutting width of 0 to 520mm, it offers flexibility and efficiency in production. The rewinding length can be customized according to specific requirements. Moreover, it has a compact structure and is easy to use, making it an ideal choice for businesses in the packaging industry.

Product Details
Main Technical Parameter



Model RTMQ520
Die cutting speed 0~200m/min
Die cutting width 0~520mm
Rewinding length 0~500m
Positioning accuracy +0.15mm
Host power 5KW
Power supply voltage 380V±10%.50HZ
Overall Dimensions 2.8(L)X1.15(W)X1.5(H)(m)
Machine weight About 1500kg
